Safety Line Guide - DuoFlex
Tie an overhand loop knot
1.
2.
3.
4.
3-prong version
1.

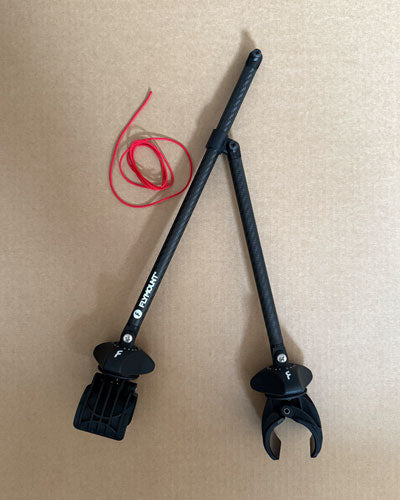

Using the supplied safety line.
2.

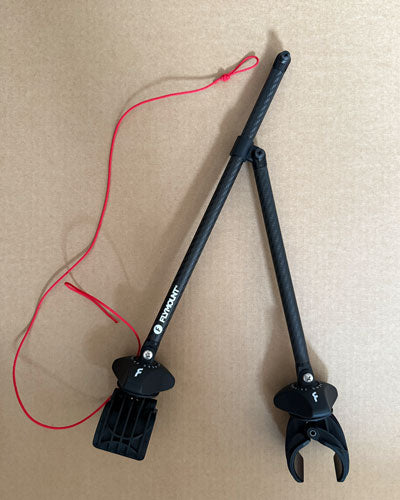

Tie an overhand loop knot as shown above.
3.

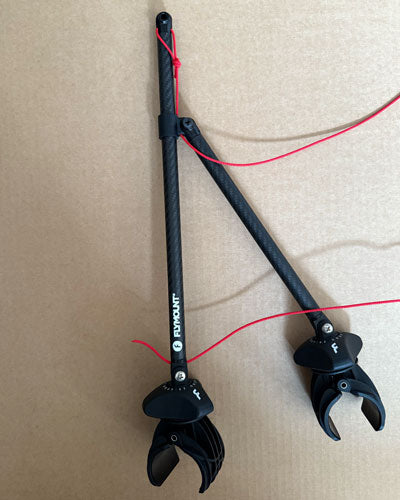

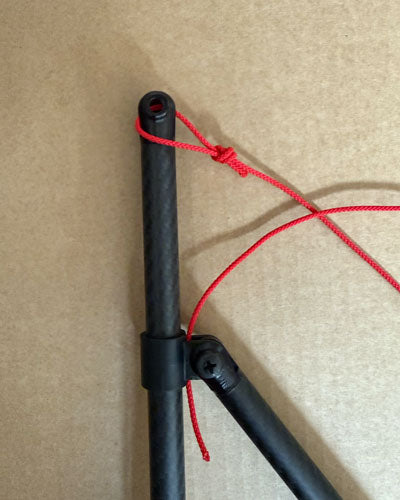

Place loop knot over one of the mounting prongs as shown, and feed loose end of safety line through the joint bracket keeping the safety line next to the carbon tubing.
4.
Feed loose end of safety line through gap between your extension and Flymount.
5.
Feed loose end of safety line through your Flymount's hinge pin.
6.

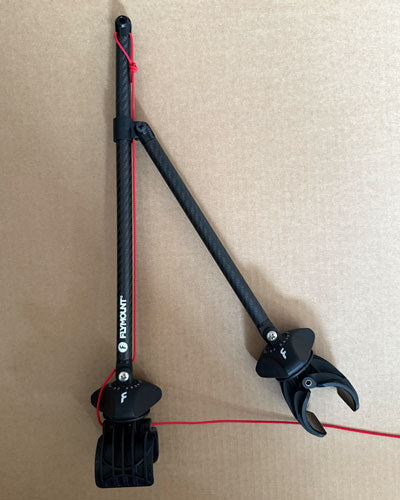

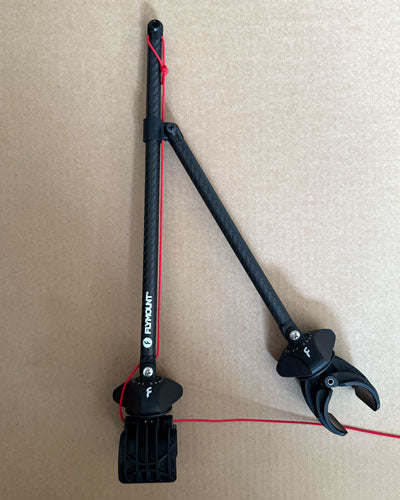

Pull safety line taught and tie off to a secure point.
quarter inc unc version
1.

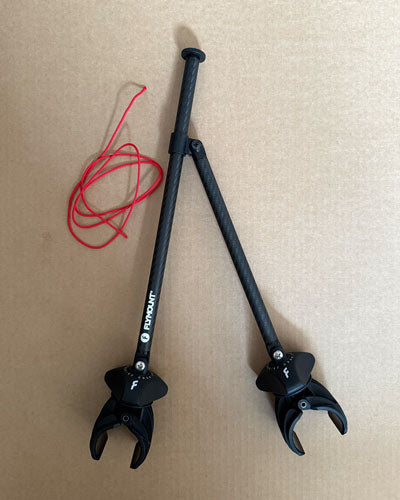

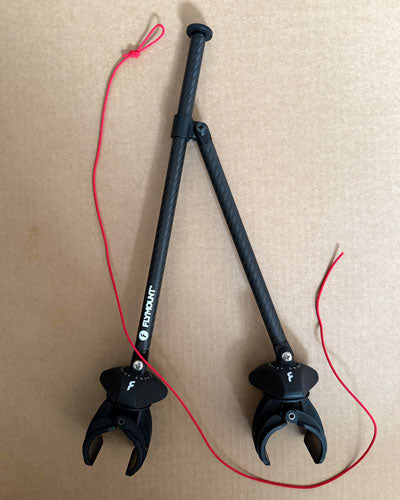

Using the supplied safety line.
2.
Tie an overhand loop knot as shown above.
3.

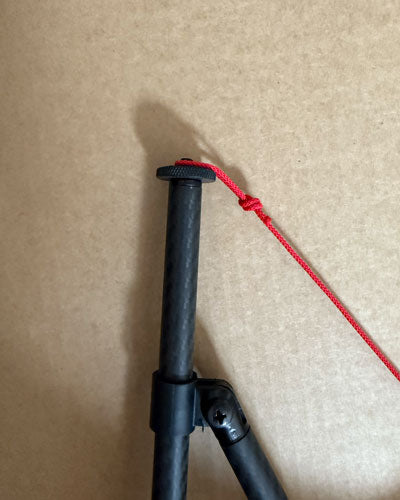

Place loop over mounting thread as shown.
4.

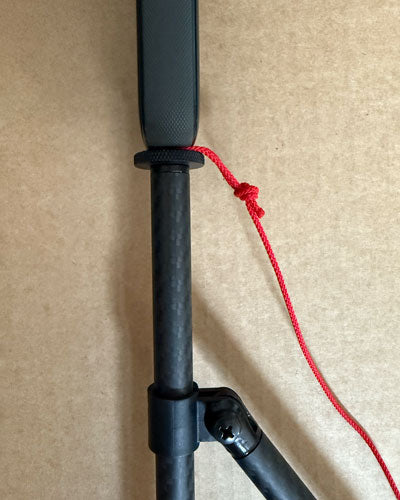

Attach camera, trapping safety line loop.
5.

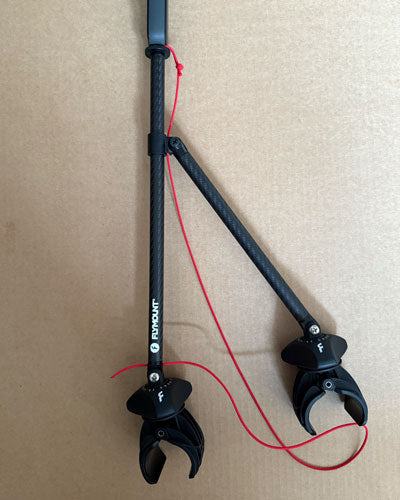

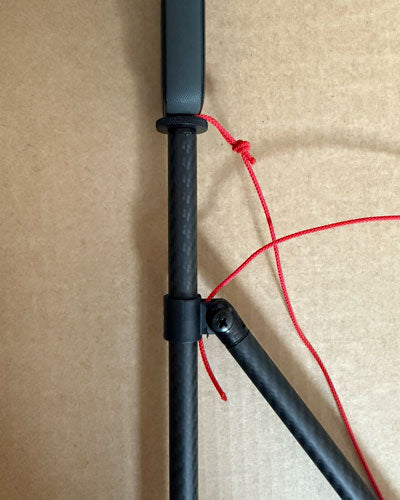

Feed loose end of safety line through the joint bracket keeping the safety line next to the carbon tubing.
6.
Feed loose end of safety line through gap between your extension and Flymount.
7.

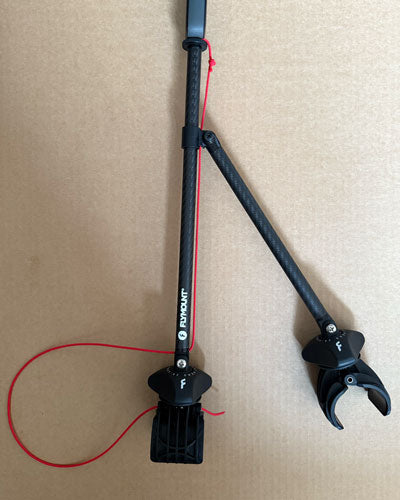

Feed loose end of safety line through your Flymount's hinge pin.
8.

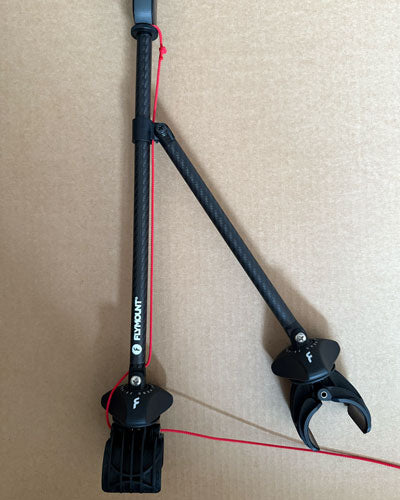

Pull safety line taught and tie off to a secure point.
